Durabase Steel Base

Step 1

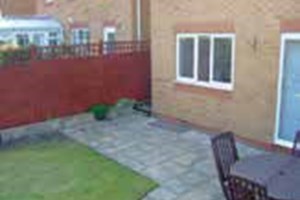

Choose the site for your conservatory. Durabase can be sited anywhere, even on a sloping site.

Step 2

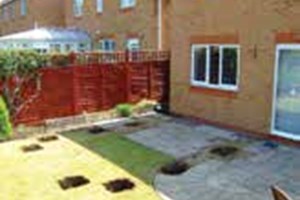

Install the concrete pads as per the pad plan supplied. Note the lack of mess and disruption!

Step 3

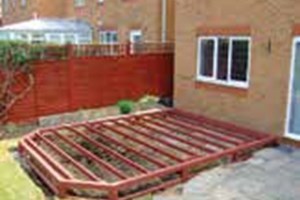

Lay down the steel base and level using the adjustable legs then fix to the house wall.

Step 4

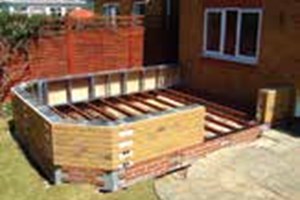

Attach brick skirt and modular wall to steel base and finish by fixing the bridging tiles in place.

Call Today

Request a quote Request a brochure

The Simple Solution for Conservatory Bases

What is Durabase? The Durabase System is a proven solution for conservatory bases – no mess, no hassle and only taking a fraction of the time to install - are just a few of its benefits. The Durabase System comprises of a bespoke steel base and modular wall, made to your exact specifications, thus ensuring it is a perfect fit for your conservatory – every time!

Why Durabase? Durabase alleviates much of the hard work and most of the problems associated with the old style conservatory base construction, but still provides a safe, strong and firm foundation for your conservatory. Durabase arrives in kit form and is suitable for both professional and DIY construction. The only foundations required are a number of concrete pads placed at strategic points around the base. This means far less excavation work and waste material to dispose of compared to other methods of base construction. The Durabase System is also very quick to install. An average base and wall can be installed in less than two days!

Brick Finish

Durabase modular walls are faced with real brick tiles and mortar. We have a wide range of finishes that will help match your existing house brick.

No need to move manhole or drains

Manholes need not present an expensive obstruction. The base will naturally span the drain and access can be gained via a trap-door and removable floor joist, built in during fabrication.

Durabase

  1. OUTER LAYER 3 PARTS
    • A. Brick Slip
    • B. High Density Insulation Board
    • C. Structural Ply Backing Panel
  2. HOLLOW FRAME
    Holes are pre-cut to provide access for wiring and plumbing.
  3. FRAME
    Galvanised steel frame provides astrong, lightweight construction.
  4. FLOORING
    18mm moisture resistant chipboard flooring system.
  5. ADJUSTABLE LEGS
    Screw mechanism to give maximum adjustable levels.
  6. UNDER FLOOR
    50mm under floor insulation.
  7. BASE FRAME
    Heavy duty steel frame.
  8. BASE SKIRT
    Brick slip on cement partical board.

The Benefits

Quicker

The Durabase arrives in kit form, complete with flooring and underfloor insulation ready for a quick and easy assembly. The average base can be installed within a day!

Easier

Uneven or sloping sites and difficult site access are easily overcome with Durabase.

Cleaner

There’s no need for large scale excavations, which minimises the amount of soil to dispose of and the disruption caused to the site.

Cost Effective

No need for expensive relocating of manholes or drains.

Straightforward Installation

Durabase is suitable for either professional or DIY installation. Durabase can be assembled with just a little DIY experience. No specialist tradesman or brick layers are required. The Modular walls are bricked and mortared before they are delivered to site.

U-Values

The following U-Values can be obtained using the Durabase System:
Walls - 0.19W/m 2 k* and Floors - 0.18W/m 2 k#
* Wall cavity must be insulated and foil backed plasterboard used.
# Durabaseplus floor system
